KAWASAKI
1100 ZXI
2001

Spare Part Category
Show me all the part categories of the model

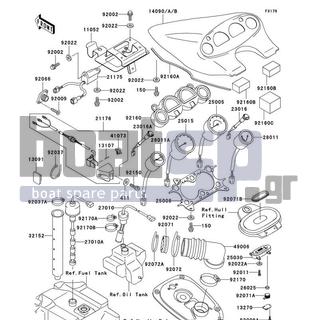

KAWASAKI - 1100 ZXI 2001 - Electrical - Meters
Electrical
Meters
No Part Part No Notes
150 BOLT-WS,6X14 150R0614
411 WASHER-PLAIN,6MM 411S0600
11052 BRACKET,UNIT MOUNT 11052-3734
13091 HOLDER,BAND 13091-3764
13107 SHAFT,PADDLEWHEEL 13107-3743
13270 PLATE 13270-3838
14090A COVER,METER,EBONY 14090-3749-H8
21175 CONTROL UNIT-ELECTRONIC 21175-3701
21176 SENSOR,SPEEDOMETER 21176-3719
23016 LAMP-ASSY,OIL LEVEL WARNING 23016-3703
23016A LAMP-ASSY,WATER TEMP WARNING 23016-3704
25005 SPEEDOMETER 25005-3702
25008 BRACKET-METER 25008-3705
25015 TACHOMETER,X1000R/MIN 25015-3702
25030 CLOCK,F.BLACK 25030-3704-6Z
26025 CELL,1.5V,SR44(TOSHIBA)
27010 SWITCH,OIL LEBEL 27010-3754
27010A SWITCH,FUEL LEVEL 27010-3771
28011 METER,FUEL 28011-3708
28011A METER,TRIM 28011-3718
32152 PIPE,FUEL LEVEL SWITCH 32152-3734
41073 WHEEL-ASSY,PADDLE 41073-3701
49006 BOOT,HARNESS 49006-3715
92002 BOLT,6X20 92002-3755
92009 SCREW,TAPPING,4X14 92009-3755
92009A SCREW,TAPPING,2X8 92009-3826
92011 SCREW 92011-562
92022 WASHER,6.5X20X1.5 92022-3710
92022A WASHER 92022-563
92037 CLAMP 92037-1173
92037A CLAMP 92037-1596
92066 PLUG,SPEEDOMETER SENSER 92066-3750
92071 GROMMET,HARNESS 92071-3803
92071A GROMMET 92071-3813
92071B GROMMET,CLOCK 92071-3817
92072 BAND,L=292.1 92072-3509
92072A BAND,L=201 92072-3778
92150 BOLT,SOCKET,6X25 92150-3823
92160 DAMPER,METER 92160-3834
92160A DAMPER 92160-3843
92160B DAMPER 92160-3859
92160C DAMPER 92160-3862
92170 CLAMP 92170-1679
92170A CLAMP 92170-3718
92170B CLAMP 92170-3734
