Frame
|
|

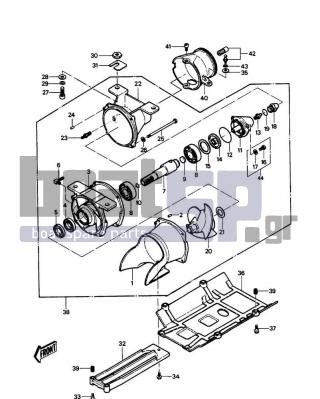

JET PUMP
|
|
| No |
Part |
Part No |
Notes |
|
1
|
CASE-PUMP |
59336-3702 |
|
|
2
|
PIN-DOWEL |
551R0612 |
|
|
3
|
VANE-GUIDE |
59496-3002 |
|
|
4
|
SEAL-OIL |
92049-3010 |
|
|
5
|
SEAL-OIL |
92049-3011 |
|
|
6
|
ELBOW |
52014-3002 |
|
|
7
|
SHAFT,PUMP |
13107-3007 |
|
|
8
|
BEARING-BALL,#6206C3 |
601B6206 |
|
|
9
|
PLUG,PUMP SHAFT |
92066-3013 |
|
|
10
|
RING-O |
92055-3019 |
|
|
11
|
CAP |
11012-3009 |
|
|
12
|
RING-O |
92055-3018 |
|
|
13
|
FITTING,GREASE |
92005-501 |
|
|
14
|
PLUG,CAP |
92066-3014 |
|
|
15
|
SHIM,T=0.15 |
92025-502 |
|
|
15A
|
SHIM,T=0.3 |
92025-503 |
|
|
18
|
CAP,GREASE FITTING |
11012-3010 |
|
|
19
|
O RING,20MM |
670B2020 |
|
|
20A
|
IMPELLER |
59256-3704 |
|
|
21
|
SHIM,T=1.0MM |
92025-3022 |
|
|
21A
|
SHIM,T=2.0MM |
92025-3023 |
|
|
21B
|
SHIM,T=1.5MM |
92025-3025 |
|
|
22
|
NOZZLE-PUMP |
59136-3002 |
|
|
23
|
FITTING,HOSE |
92005-3001 |
|
|
24
|
PIN-DOWEL |
551R0612 |
|
|
25
|
BOLT,6X125 |
110R06125 |
|
|
26
|
WASHER-PLAIN,6MM |
411S0600 |
|
|
27
|
BOLT,10X25 |
92003-529 |
|
|
28
|
WASHER-PLAIN,10MM |
411S1000 |
|
|
29
|
WASHER-SPRING,10MM |
461S1000 |
|
|
30
|
NUT,10MM |
92015-3005 |
|
|
31
|
SHIM,T=0.3MM |
92025-3701 |
|
|
31A
|
SHIM,T=0.5MM |
92025-3702 |
|
|
31B
|
SHIM,T=1.0MM |
92025-3703 |
|
|
31C
|
SHIM,T=1.5MM |
92025-3704 |
|
|
32
|
GRATE |
59366-3001 |
|
|
33
|
BOLT-WP,6X25 |
156R0625 |
|
|
34A
|
BOLT,6X12 |
92002-3763 |
|
|
35
|
WASHER |
92022-567 |
|
|
36
|
COVER-JET PUMP |
59446-3002 |
|
|
37
|
BOLT-WP,6X25 |
156R0625 |
|
|
38
|
PUMP-ASSY-JET |
59486-3701 |
|
|
39
|
NUT,INSERT,6MM |
92015-523 |
|
|
40A
|
NOZZLE-STRG |
59476-3702 |
|
|
41
|
BOLT,SOCKET,6X11 |
92001-3701 |
|
|
42
|
JOINT-BALL |
59266-3701 |
|
|
43
|
WASHER-SPRING,6MM |
461S0600 |
|
|
44
|
BOLT-WP,6X20 |
156R0620 |
|
|
|
|
