KAWASAKI
STX-12F
2003

Spare Part Category
Show me all the part categories of the model

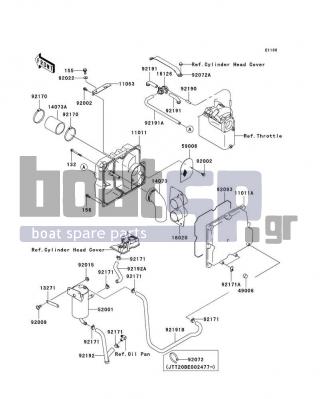

KAWASAKI - STX-12F 2003 - Frame - Intake Silencer(JT1200-B1)
Frame
Intake Silencer(JT1200-B1)
No Part Part No Notes
132 BOLT-FLANGED-SMALL 132Y0660
155 BOLT-WSP-SMALL,8X20 155R0820
156 BOLT-WP,6X16 156R0616
11011 CASE-AIR FILTER,FR 11011-3703
11011A CASE-AIR FILTER,RR 11011-3704
11053 BRACKET 11053-3725
13271 PLATE 13271-3880
14073 DUCT,AIR FILTER-ASV 14073-3794
14073A DUCT,AIR FILTER-THOROTTLE 14073-3795
16126 VALVE,AIR SWITCH 16126-1433
18020 BAFFLE 18020-3703
49006 BOOT,DRAIN 49006-3718
52001 TANK-OIL, SEPARETOR 52001-3736
59006 ARRESTER-FLAME 59006-3719
92002 BOLT,6X12 92002-3763
92009 SCREW,M6X20 92009-3870
92015 NUT,6MM 92015-3767
92022 WASHER,8.2X18X1.5 92022-3743
92072 BAND,L=203.2 92072-3867
92072A BAND 92072-3869
92093 SEAL 92093-3766
92170 CLAMP 92170-3764
92171 CLAMP,TUBE 92171-3710
92171A CLAMP,BOOT 92171-3711
92190 TUBE,4X9X450 92190-1062
92191 TUBE 92191-3959
92191A TUBE,ASV-AIR CASE 92191-3960
92191B TUBE,SEPARATOR-AIR CLEANER 92191-3998
92192 TUBE,SEPARTOR-OILPLAN 92192-3701
92192A TUBE,HEAD-SEPARATOR 92192-3719
