KAWASAKIJET SKIΒ® ULTRAΒ® 310X2014
|
|
|
Frame
|
|

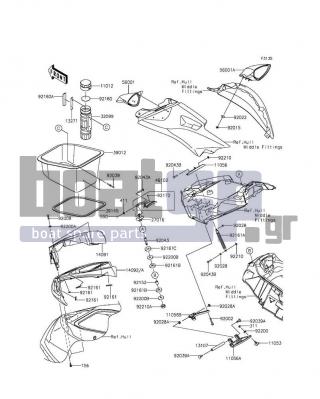

Hull Front Fittings
|
|
| No |
Part |
Part No |
Notes |
|
156
|
BOLT-WP,5X16 |
156R0516 |
|
|
311
|
NUT-HEX,6MM |
311R0600 |
|
|
411
|
WASHER-PLAIN,6MM |
411S0600 |
|
|
550
|
PIN-COTTER,1.6X15 |
550S1615 |
|
|
11012
|
CAP,FIRE EXTINGUISHER |
11012-3766 |
|
|
11053
|
BRACKET |
11053-3776 |
|
|
11056
|
BRACKET |
11056-3703 |
|
|
11056A
|
BRACKET |
11056-3725 |
|
|
11056B
|
BRACKET |
11056-3726 |
|
|
13107
|
SHAFT,FRONT HINGE |
13107-3802 |
|
|
13271
|
PLATE,FIRE EXTINGUISHER |
13271-3775 |
|
|
14091
|
COVER,FR,INSIDE |
14091-3828 |
|
|
14092A
|
COVER,FR,TOP,M.S.WHITE |
14092-0775-31Y |
|
|
27016
|
LOCK-ASSY,HATCH |
27016-3761 |
|
|
32099
|
CASE,FIRE EXTINGUISHER |
32099-3769 |
|
|
39012
|
CASE-STORAGE |
39012-0034 |
|
|
39145
|
TRIM-SEAL,L=1627 |
39145-3807 |
|
|
46102
|
ROD,HATCH LOCK |
46102-3734 |
|
|
56001
|
MIRROR-ASSY,LH,F.BLACK |
56001-0263-6Z |
|
|
56001A
|
MIRROR-ASSY,RH,F.BLACK |
56001-0264-6Z |
|
|
92002
|
BOLT,6X30 |
92002-3726 |
|
|
92009
|
SCREW,TAPPING,6X20 |
92009-3842 |
|
|
92015
|
NUT,LOCK,6MM |
92015-3766 |
|
|
92022
|
WASHER,6.5X20X1.5 |
92022-3710 |
|
|
92028
|
BUSHING |
92028-3765 |
|
|
92028A
|
BUSHING |
92028-3770 |
|
|
92039
|
RIVET |
92039-3783 |
|
|
92039A
|
RIVET |
92039-3788 |
|
|
92043
|
PIN |
92043-0754 |
|
|
92043A
|
PIN,6X33 |
92043-0795 |
|
|
92043B
|
PIN,6X33 |
92043-3748 |
|
|
92152
|
COLLAR,8.2X14X16.2 |
92152-0979 |
|
|
92160
|
DAMPER |
92160-3814 |
|
|
92160A
|
DAMPER |
92160-3821 |
|
|
92161
|
DAMPER,10X50X4 |
92161-1373 |
|
|
92161A
|
DAMPER,HATCH |
92161-1580 |
|
|
92161B
|
DAMPER |
92161-3739 |
|
|
92161C
|
DAMPER |
92161-3747 |
|
|
92172
|
SCREW,3X8 |
92172-3716 |
|
|
92200
|
WASHER,6.5X16X1.0 |
92200-3712 |
|
|
92200A
|
WASHER,6.5X14.5X1.5 |
92200-3775 |
|
|
92200B
|
WASHER,8.5X32X2 |
92200-3786 |
|
|
92210
|
NUT,SPEED,6MM |
92210-3739 |
|
|
92210A
|
NUT,LOCK,8MM |
92210-3742 |
|
|
|
|
