Frame
|
|

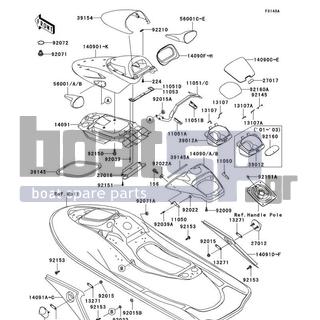

Hull Covers
|
|
| No |
Part |
Part No |
Notes |
|
156
|
BOLT-WP,6X18 |
156R0618 |
|
|
224
|
SCREW-PAN-WP-CROS,5X14 |
224R0514 |
|
|
11050
|
BRACKET |
11050-3746 |
|
|
11051
|
BRACKET |
11051-3707 |
|
|
11051A
|
BRACKET,LH |
11051-3745 |
|
|
11051B
|
BRACKET,RH |
11051-3746 |
|
|
11053
|
BRACKET |
11053-3714 |
|
|
13107
|
SHAFT |
13107-3761 |
|
|
13107A
|
SHAFT |
13107-3769 |
|
|
13271
|
PLATE |
13271-3724 |
|
|
14090A
|
COVER,HANDLE,C.P.RED |
14090-3809-V9 |
|
|
14090D
|
COVER,CENTER STORAGE,C.P.RED |
14090-3812-V9 |
|
|
14090G
|
COVER,METER,C.P.RED |
14090-3820-V9 |
|
|
14090J
|
COVER,HATCH,C.P.RED |
14090-3823-V9 |
|
|
14091
|
COVER,DUCT |
14091-3730 |
|
|
14091B
|
COVER,SIDE,LH,C.P.RED |
14091-3731-V9 |
|
|
14091E
|
COVER,SIDE,RH,C.P.RED |
14091-3732-V9 |
|
|
27012
|
HOOK,F.BLACK |
27012-3834-6Z |
|
|
27016
|
LOCK-ASSY,LID |
27016-3753 |
|
|
27017
|
LOCK,CENTER STORAGE,F.BLACK |
27017-3720-6Z |
|
|
39012A
|
CASE-STORAGE |
39012-3737 |
|
|
39145
|
TRIM-SEAL |
39145-3756 |
|
|
39145A
|
TRIM-SEAL,L=340 |
39145-3764 |
|
|
39154
|
WINDSHIELD |
39154-3707 |
|
|
56001
|
MIRROR-ASSY,LH,C.P.RED |
56001-3713-A5 |
|
|
56001C
|
MIRROR-ASSY,RH,C.P.RED |
56001-3714-A5 |
|
|
92009
|
SCREW,TAPPING,5X20 |
92009-3716 |
|
|
92015
|
NUT,FLANGED,8MM |
92015-3709 |
|
|
92015A
|
NUT,LOCK,6MM |
92015-3766 |
|
|
92015B
|
NUT,LOCK,5MM |
92015-3798 |
|
|
92022
|
WASHER,5X16X1.5 |
92022-3041 |
|
|
92022A
|
WASHER,6.5X20X1.5 |
92022-3710 |
|
|
92039
|
RIVET |
92039-3747 |
|
|
92039A
|
RIVET |
92039-3775 |
|
|
92071
|
GROMMET |
92071-3819 |
|
|
92071A
|
GROMMET |
92071-3826 |
|
|
92072
|
BAND,L=292.1 |
92072-3509 |
|
|
92145
|
SPRING |
92145-3711 |
|
|
92150
|
BOLT,6X18 |
92150-3729 |
|
|
92151
|
BOLT,6X22 |
92151-3769 |
|
|
92151A
|
BOLT |
92151-3776 |
|
|
92153
|
BOLT,5MM |
92153-3703 |
|
|
92160A
|
DAMPER |
92160-3933 |
|
|
92210
|
NUT |
92210-3750 |
|
|
|
|
