KAWASAKI
650 SX
1990

Spare Part Category
Show me all the part categories of the model

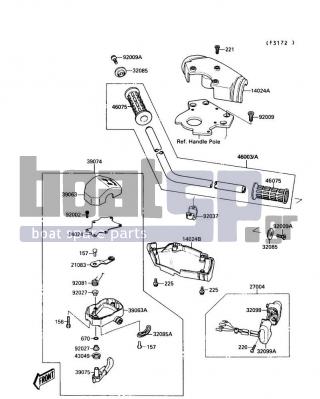

KAWASAKI - 650 SX 1990 - Body Parts - Handlebar
Body Parts
Handlebar
No Part Part No Notes
156 BOLT-WP,5X25 156R0525
157 BOLT-WSP,5X12 157R0512
220 SCREW-PAN-CROS,5X30 220R0530
221 SCREW-CSK-CROS,6X16 221R0616
225 SCREW-PAN-WSP-CROS,5X20 225R0520
670 O RING,8MM 670B1508
14024 COVER,THROTTLE LEVER 14024-3701
14024A COVER,UPP 14024-3723
14024B COVER,LWR 14024-3724
21083 ARM,THROTTLE LEVER 21083-3701
27004 SWITCH-ASSY 27004-3705
32085 STOPPER 32085-3705
32085A STOPPER 32085-3709
32099 CASE,FR,SWITCH 32099-3721
32099A CASE,RR,SWITCH 32099-3723
39063 HOUSING-CONTROL,UPP 39063-3703
39063A HOUSING-CONTROL,LWR 39063-3707
39074 LEVER-ASSY-THROTTLE 39074-3711
39075 LEVER-THROTTLE 39075-3704
43049 PACKING,THROTTLE LEVER 43049-3701
46003A HANDLE 46003-3711
92002 BOLT,SOCKET,3X10 92002-3751
92009 SCREW,8X22 92009-3701
92009A SCREW,6X16 92009-3703
92027 COLLAR,THROTTLE LEVER 92027-3704
92037 CLAMP,HANDLEBAR 92037-503
92081 SPRING,THROTTLE LEVER RETURN 92081-3702
