KAWASAKI
650 SX
1990

Spare Part Category
Show me all the part categories of the model

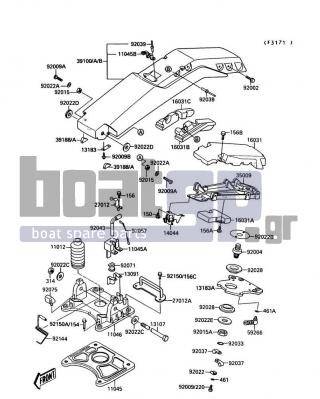

KAWASAKI - 650 SX 1990 - Body Parts - Handle Pole
Body Parts
Handle Pole
No Part Part No Notes
150 BOLT-WS,6X12 150R0612
156 BOLT-WP,5X10 156R0510
156A BOLT-WP,5X12 156R0512
156B BOLT-WP,5X14 156R0514
314 NUT-HEX-FINE,14MM 314R1400
461A WASHER-SPRING,6MM 461S0600
11012 CAP. 59176-514
11045 BRACKET,BACK-UP PLATE 11045-3722
11045A BRACKET,POLE STOPPER 11045-3728
11045B BRACKET,HANDLE POLE PAD 11045-3733
11046 BRACKET,PIVOT SHAFT 11046-3715
13091 HOLDER 13091-3717
13107 SHAFT,PIVOT 13107-3709
13183 PLATE 13183-3720
13183A PLATE,HANDLEBAR 13183-3755
14044 HOLDER-CABLE 14044-3001
16031 FLOAT 16031-3715
16031A FLOAT,CNT 16031-3737
16031B FLOAT,LH 16031-3738
16031C FLOAT,RH 16031-3752
27012 HOOK 27012-3717
27012A HOOK,ENGINE HOOD 27012-3733
35009 BRACE 35009-3702
39100B POLE-COMP-HANDLE,M.Z.BLUE 39100-3707-EM
39188 TAPE,(RED) 39188-3701
39188A TAPE,(BLUE) 39188-3703
59266 JOINT-BALL 59266-3701
92002 BOLT,6X12 92002-3763
92004 STUD 92004-3713
92009 SCREW,5X16 92009-3736
92009A SCREW 92009-3738
92009B SCREW 92011-562
92015 NUT 92015-3015
92015A NUT,18MM 92015-3746
92022 WASHER,CLAMP 92022-3014
92022A WASHER 92022-3042
92022B WASHER 92022-3716
92022C WASHER,15X34X2.0 92022-3738
92022D WASHER,15X36X4.5 92022-3741
92022E WASHER 92022-571
92028 BUSHING 92028-3726
92033 RING-SNAP,15MM 92033-3710
92037 CLAMP,LEAD WIRE 92037-3007
92039 RIVET 92039-3701
92043 PIN,POLE STOPPER 92043-3714
92057 CHAIN,COVER,L=100 92057-3704
92071 GROMMET 92071-3752
92075 DAMPER,POLE STOPPER 92075-3742
92144 SPRING,HANDLE POLE 92144-3716
92150 BOLT,6X12 92150-3709
92150A BOLT,8X30 92150-3721
