Body Parts
|

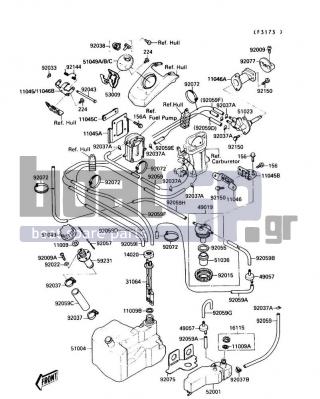

Fuel Tank
|
|
No |
Part |
Part No |
Notes |
156
|
BOLT-WP,6X12 |
156R0612 |
|
156A
|
BOLT-WP,6X16 |
156R0616 |
|
224
|
SCREW-PAN-WP-CROS,5X10 |
224R0510 |
|
11009
|
GASKET,TANK CAP |
11009-3020 |
|
11009A
|
GASKET,OIL FILLER CAP |
11009-3736 |
|
11009B
|
GASKET |
92065-504 |
|
11045A
|
BRACKET,FUEL PUMP |
11045-3734 |
|
11045B
|
BRACKET,STRAINER |
11045-3735 |
|
11045C
|
BRACKET |
11045-3765 |
|
11046
|
BRACKET,STRAINER |
11046-3706 |
|
11046A
|
BRACKET,FUEL TAP |
11046-3828 |
|
11046B
|
BRACKET,HINGE |
11046-3837 |
|
14020
|
RETAINER |
23072-501 |
|
16115
|
CAP-OIL FILLER |
16115-3704 |
|
31064
|
PIPE-COMP,FUEL |
31064-3708 |
|
49019
|
FILTER-FUEL |
49019-3706 |
|
49057
|
VALVE-RELIEF |
49057-3001 |
|
51004
|
TANK-FUEL |
51004-3705 |
|
51023
|
TAP-ASSY,FUEL |
51023-3706 |
|
51036
|
CUP,FUEL FILTER |
51036-3702 |
|
51049
|
CAP-TANK |
51049-3001 |
|
51049A
|
CAP-TANK,M.Z.BLUE |
51049-3711-EM |
|
52001
|
TANK-OIL |
52001-3705 |
|
53009
|
HINGE |
53009-3706 |
|
59231
|
FILLER,FUEL TANK |
59231-3001 |
|
92009
|
SCREW,4X8 |
92009-3729 |
|
92009A
|
SCREW |
92011-562 |
|
92015
|
NUT,RING |
92015-3013 |
|
92022
|
WASHER |
92022-563 |
|
92033
|
RING-SNAP,2MM |
92033-3711 |
|
92037
|
CLAMP |
92037-3009 |
|
92037A
|
CLAMP,11MM |
92037-3723 |
|
92037B
|
CLAMP |
92037-3726 |
|
92038
|
KEY |
92038-3701 |
|
92043
|
PIN |
92043-3713 |
|
92055
|
RING-O,FILTER CUP |
92055-3006 |
|
92057
|
CHAIN,COVER,L=100 |
92057-3704 |
|
92059
|
TUBE,FUEL,6.5X11.5X310 |
92059-1252 |
|
92059A
|
TUBE,5.8X12.2X55 |
92059-3026 |
|
92059B
|
TUBE,5.8X10.8X200 |
92059-3721 |
|
92059C
|
TUBE,45X53X125 |
92059-3781 |
|
92059D
|
TUBE,ON,5.8X10.8X1050 |
92059-3789 |
|
92059E
|
TUBE,5.8X10.8X380 |
92059-3790 |
|
92059F
|
TUBE,RES,5.8X10.8X1050 |
92059-3795 |
|
92059G
|
TUBE |
92059-3802 |
|
92059H
|
TUBE,5.8X10.8X1100 |
92059-3810 |
|
92059I
|
TUBE,RETURN,7X12X800 |
92059-3814 |
|
92072
|
BAND,L=123 |
92072-030 |
|
92075
|
DAMPER |
92075-3740 |
|
92077
|
KNOB |
92077-3709 |
|
92144
|
SPRING |
92144-3710 |
|
92150
|
BOLT,5X14 |
92150-3702 |
|
|
|
|
