Body Parts
|
|

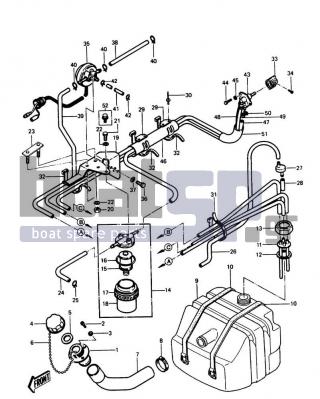

FUEL TANK
|
|
| No |
Part |
Part No |
Notes |
|
1
|
FILLER,FUEL TANK |
59231-3001 |
|
|
2
|
SCREW |
92011-562 |
|
|
3
|
WASHER |
92022-563 |
|
|
4
|
CAP-TANK |
51049-3001 |
|
|
5
|
GASKET,TANK CAP |
11009-3020 |
|
|
6A
|
CHAIN,COVER,L=100 |
92057-3704 |
|
|
7
|
TUBE,FUEL INLET |
92059-3020 |
|
|
8
|
CLAMP |
92037-3009 |
|
|
9
|
TANK-FUEL |
51004-3702 |
|
|
10
|
BAND,FUEL TANK |
92072-521 |
|
|
11
|
PIPE-COMP,FUEL |
31064-3001 |
|
|
12
|
GASKET |
92065-504 |
|
|
13
|
RETAINER |
23072-501 |
|
|
14
|
FILTER-FUEL |
49019-3701 |
|
|
15
|
FILTER,FUEL ELEMENT |
14043-3701 |
|
|
16
|
RING-O,FILTER CUP |
92055-3006 |
|
|
17
|
NUT,RING |
92015-3013 |
|
|
18
|
CUP,FUEL FILTER |
51036-3701 |
|
|
19
|
BRACKET,FUEL FILTER |
11034-3013 |
|
|
20
|
NUT-HEX,6MM |
311R0600 |
|
|
22
|
WASHER-SPRING,6MM |
461S0600 |
|
|
23
|
BRACKET |
11034-3701 |
|
|
24
|
TUBE,6X10X200 |
92059-3011 |
|
|
25
|
CLAMP |
92037-3024 |
|
|
26
|
TUBE,FUEL,6X10X940 |
92059-3025 |
|
|
27
|
VALVE-RELIEF |
49057-3001 |
|
|
28
|
TUBE,5.8X12.2X55 |
92059-3026 |
|
|
29
|
CLAMP,TUBE |
92037-3005 |
|
|
30
|
RIVET |
92039-3702 |
|
|
31
|
BAND,L=123 |
92072-030 |
|
|
32
|
BAND,L=149 |
92072-031 |
|
|
33
|
KNOB,FUEL TAP |
92077-503 |
|
|
34A
|
SCREW,4X8 |
92009-3729 |
|
|
35
|
VALVE-ASSY,RPM LIMITER |
49116-3001 |
|
|
36
|
BOLT,6X14 |
110R0614 |
|
|
37
|
WASHER-SPRING,6MM |
461S0600 |
|
|
38
|
TUBE,FUEL,6X235 |
92059-3036 |
|
|
39
|
TUBE,FUEL,6X680 |
92059-3037 |
|
|
40
|
CLAMP |
92037-3024 |
|
|
41
|
TUBE,FUEL,2.5X185 |
92059-3038 |
|
|
42
|
CLAMP,TUBE |
92037-3025 |
|
|
43A
|
TAP-ASSY,FUEL |
51023-3705 |
|
|
44
|
BOLT,5X12 |
110R0512 |
|
|
45
|
WASHER-PLAIN,5MM |
411S0500 |
|
|
46
|
TUBE,VINYL,22X350 |
92059-3018 |
|
|
47
|
TUBE,FUEL,"ON",6X1180 |
92059-3005 |
|
|
48
|
TUBE,FUEL,"RESERVE" |
92059-3006 |
|
|
49
|
TUBE,6X10X960 |
92059-3007 |
|
|
50
|
CLAMP |
92037-551 |
|
|
51
|
TUBE,GUARD |
92059-3008 |
|
|
52
|
BOLT,6X12 |
92150-3709 |
|
|
|
|
