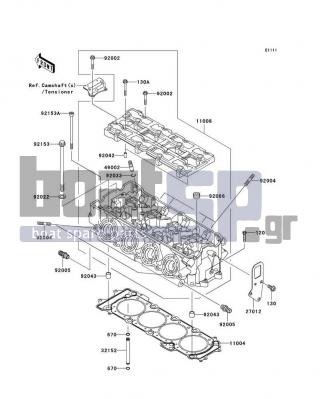

KAWASAKI - ULTRA 260LX 2009 - Engine/Transmission - Cylinder Head

Engine/Transmission
Cylinder Head
No	Part	Part No	Notes
120	BOLT-SOCKET,6X30	120CD0630
130	BOLT-FLANGED,8X18	130BD0818
130A	BOLT-FLANGED,6X50	130CD0650
670	O RING,7MM	670D1507
11004	GASKET-HEAD	11004-3722
11008	HEAD-COMP-CYLINDER	11008-3708
27012	HOOK,ENGINE,RR	27012-3856
32152	PIPE,OIL	32152-1544
49002	GUIDE-VALVE	49002-1140
92002	BOLT,6X40	92002-1756
92004	STUD,8X30	92004-3743
92005	FITTING	92005-3714
92022	WASHER,11.5X20.5X1.6	92022-1720
92033	RING-SNAP	92033-1247
92042	PIN,DOWEL,6.3X8X14	92042-007
92043	PIN,14X14	92043-1593
92066	PLUG,PT1/2X12.5	92066-0002
92153	BOLT,FLANGED,11X174	92153-3730
92153A	BOLT,SOCKET,7X126	92153-3731
