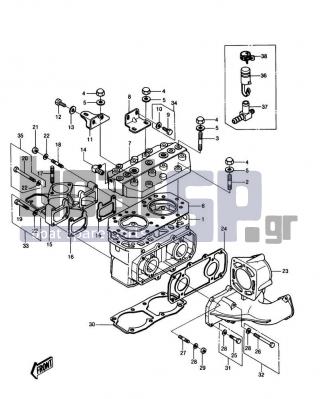

KAWASAKI - JS550 1989 - Engine/Transmission - CYLINDER HEAD/CYLINDER

Engine/Transmission
CYLINDER HEAD/CYLINDER
No	Part	Part No	Notes
1A	CYLINDER-ENGINE	11005-3703
2	STUD,8X42	92004-3016
3	STUD,8X50	92004-3017
4A	NUT,CAP,8MM	92015-1371
5A	WASHER,8.2X18X1.5	92022-1964
6	GASKET-HEAD	11004-3024
7	HEAD-COMP-CYLINDER	11008-2059-YR
8	BRACKET,CARBURETOR	11044-2074
11	BRACKET,MUFFLER	11044-2075
12A	BOLT,8X18	92150-3754
15	MANIFOLD-INTAKE	59076-2052-YR
16	GASKET,INTAKE	16062-510
17	STUD,8X27.5	92004-3022
18A	STUD,6X35	92004-3722
21	NUT-HEX,6MM	311R0600
22	WASHER-PLAIN-SMALL,6MM	410S0600
23	MANIFOLD-EXHAUST	59081-2051-YR
24	GASKET,EXHAUST MANIFOLD	11009-3023
27A	STUD	92004-3720
28	WASHER-PLAIN-SMALL,6MM	410S0600
29	NUT-HEX,6MM	311R0600
30	GASKET,CYLINDER	11009-3054
31	BOLT,6X25	92002-3714
32	BOLT,6X70	92150-3753
33	BOLT,6X35	92002-3715
34	BOLT,6X16	92002-3728
35	BOLT,6X70	92150-3753
36	CAP	11012-3737
37	FITTING	92005-3704
38	CLAMP	92170-3714
