Please select company, model and Year.
|
|
|
|
|
|
|
Engine/Transmission
|
|

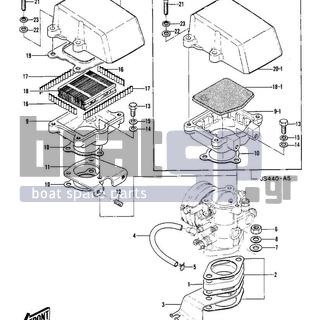

CARBURETOR BRACKETS/FLAME ARRESTER ('79-
|
|
| No |
Part |
Part No |
Notes |
|
1
|
INSULATOR |
16061-511 |
|
|
1
|
INSULATOR |
16061-511 |
|
|
2
|
GASKET,INSULATOR |
11009-3786 |
|
|
2
|
GASKET,INSULATOR |
11009-3786 |
|
|
3
|
BRACKET,CONTROL |
11034-3004 |
|
|
3
|
BRACKET,CONTROL |
11034-3004 |
|
|
4
|
PIPE,PULS |
92059-518 |
|
|
4
|
PIPE,PULS |
92059-518 |
|
|
5
|
CLAMP,SPARK PLUG CAP |
92037-1173 |
|
|
5
|
CLAMP,SPARK PLUG CAP |
92037-1173 |
|
|
6
|
NUT,8MM |
312R0800 |
|
|
6
|
NUT,8MM |
312R0800 |
|
|
7
|
WASHER |
410S0800 |
|
|
7
|
WASHER |
410S0800 |
|
|
8
|
WASHER SPRING 8MM |
461S0800 |
|
|
9-1
|
CASE,FLAME ARRESTER |
32099-2169 |
|
|
9
|
CASE,FLAME ARRESTER |
59021-527-9G |
|
|
10
|
GASKET |
11060-3702 |
|
|
10
|
GASKET |
11060-3702 |
|
|
11
|
BRACKET,CARBURETOR |
11034-3003 |
|
|
12
|
STUD,6X12 |
171R0612 |
|
|
13
|
BOLT 6X22 |
110R0622 |
|
|
13
|
BOLT,HEX HEAD,6X25 |
110R0625 |
|
|
14
|
WASHER |
410S0600 |
|
|
14
|
WASHER |
410S0600 |
|
|
15
|
WASHER-SPRING,6MM |
461S0600 |
|
|
15
|
WASHER-SPRING,6MM |
461S0600 |
|
|
16
|
SPRING |
92081-544 |
|
|
17
|
SPRING |
92081-545 |
|
|
18-1
|
ARRESTER-FLAME |
59006-3706 |
|
|
18
|
ARRESTER,FLAME |
59006-502 |
|
|
19
|
PLATE,FLAME ARRESTER |
59086-540 |
|
|
20-1
|
COVER-INTAKE |
59421-3001-YR |
|
|
20
|
COVER,AIR INTAKE |
59036-563 |
|
|
21
|
BOLT,6X30 |
92001-3022 |
|
|
21
|
BOLT,6X30 |
92001-3022 |
|
|
22
|
WASHER |
410S0600 |
|
|
22
|
WASHER |
410S0600 |
|
|
23
|
WASHER-SPRING,6MM |
461S0600 |
|
|
23
|
WASHER-SPRING,6MM |
461S0600 |
|
|
|
|
