Engine/Transmission
|

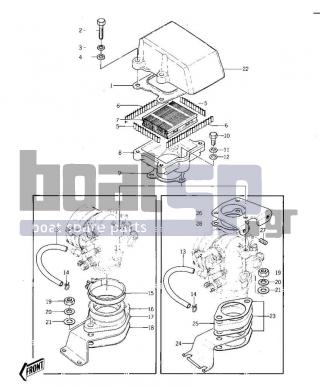

CARBURETOR BRACKETS/FLAME ARRESTER ('77-
|
|
No |
Part |
Part No |
Notes |
1
|
PLATE,FLAME ARRESTER |
59086-540 |
|
2
|
BOLT,6X28 |
110R0628 |
|
3
|
WASHER-SPRING,6MM |
461S0600 |
|
4
|
WASHER |
410S0600 |
|
5
|
SPRING |
92081-544 |
|
6
|
SPRING |
92081-545 |
|
7
|
ARRESTER,FLAME |
59006-502 |
|
8
|
CASE,FLAME ARRESTER |
59021-527-9G |
|
9
|
GASKET |
11060-3702 |
|
10
|
BOLT 6X20 |
110R0620 |
10 - BOLT 6X20
*|*E/NO. TIE93-26524
|
10
|
BOLT,HEX HEAD,6X25 |
110R0625 |
10 - BOLT,HEX HEAD,6X25
*|*E/NO. TC440B-0000
|
11
|
WASHER-SPRING,6MM |
461S0600 |
|
12
|
WASHER |
410S0600 |
|
13
|
PIPE,PULS |
92059-518 |
|
14
|
CLAMP,SPARK PLUG CAP |
92037-1173 |
|
15
|
CLAMP |
92037-550 |
15 - CLAMP
*|*E/NO. TIE93-26524
|
15
|
CLAMP |
92037-550 |
15 - CLAMP
*|*E/NO. TIE93-26524
|
16
|
HOLDER-CARBURETOR |
16065-516 |
|
17
|
BRACKET,CONTROL |
59016-558 |
17 - BRACKET,CONTROL
*|*E/NO. TIE93-26524
|
17
|
BRACKET,CONTROL |
59016-558 |
17 - BRACKET,CONTROL
*|*E/NO. TIE93-26927
|
18
|
GASKET,INTAKE |
16062-521 |
|
19
|
NUT,8MM |
312R0800 |
|
20
|
WASHER SPRING 8MM |
461S0800 |
|
21
|
WASHER |
410S0800 |
|
22
|
COVER,AIR INTAKE |
59036-563 |
|
23
|
GASKET,INSULATOR |
11009-3786 |
23 - GASKET,INSULATOR
*|*E/NO. TC440B-0000
|
24
|
BRACKET,CONTROL |
11034-3004 |
24 - BRACKET,CONTROL
*|*E/NO. TC440B-0000
|
25
|
INSULATOR |
16061-511 |
25 - INSULATOR
*|*E/NO. TC440B-0000
|
26
|
BRACKET,CARBURETOR |
11034-3003 |
26 - BRACKET,CARBURETOR
*|*E/NO. TC440B-0000
|
27
|
STUD,6X12 |
171R0612 |
27 - STUD,6X12
*|*E/NO. TC440B-0000
|
28
|
GASKET |
11060-3702 |
28 - GASKET
*|*E/NO. TC440B-0000
|
|
|
